Hinges

Continuous Geared Hinges, Full Surface, Heavy Duty

The UCFS83HD/UCFSSC83HD Continuous Geared Hinges are recommended for doors 1-3/4” thick, 48” wide and up to 450 lbs in weight.
For high or moderate traffic applications.

• Certified ANSI/BHMA A156.26, Grade 1
• cULus fire rated, 90/60 min
• Full surface, heavy duty

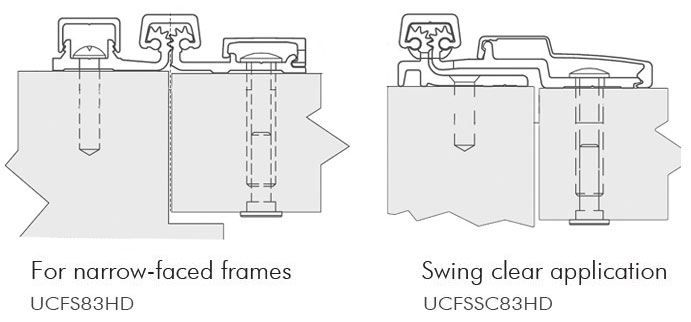

• Center Pivot/Swing Clear
• 48" door width maximum
• 450lbs door weight maximum
• Clear Aluminum/Dark Bronze
• Undercut Tek screws and sex-nut bolts included

MFG#	Description	Finish
UCFS83HD-AL	Full Surface, Heavy Duty, Center Pivot, Continuous Hinge 83"	Clear Aluminum
UCFS83HD-DU	Full Surface, Heavy Duty, Center Pivot, Continuous Hinge 83"	Dark Bronze
UCFSSC83HD-AL	Full Surface, Heavy Duty, Swing Clear, Continuous Hinge 83"	Clear Aluminum
UCFSSC83HD-DU	Full Surface, Heavy Duty, Swing Clear, Continuous Hinge 83"	Dark Bronze
