Exit Devices

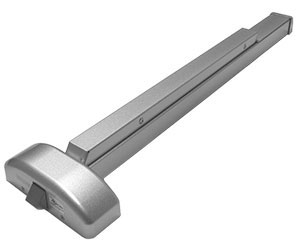

9500 Series Heavy Duty

The 9500 series heavy-duty touch pad exit device offers a sophisticated contoured design and is available with a wide variety of exterior trims and accessory options.
This exit device is ideal for use on wood or hollow metal doors and offers exceptional performance for commercial or institutional high traffic applications.

  • Non-handed rim mounted type
  • Field reversible and sizeable
  • 2 3/4” (70mm) backset
  • Made from heavy gauge steel
  • Stainless steel latch bolt has 3/4” (19mm) throw
  • Finish: painted metallic aluminum or stainless steel
  • Conforms to ANSI A156.3, Grade 1
  • cUL and UL listed for Panic Hardware
  • cUL and UL listed for “A” label 3 hours for Fire Exit Hardware
  • Limited 1 year mechanical warranty
9500
MFG# Description Door width Finish
9500FR3-28 Heavy Duty Fire Rim Exit Device 36” Aluminium
9500PR3-28 Heavy Duty  Rim Exit Device 36” Aluminium
9500PR4-28 Heavy Duty Rim Exit Device 48” Aluminium
9500PR3-32D Heavy Duty Rim Exit Device 36” Stainless Steel

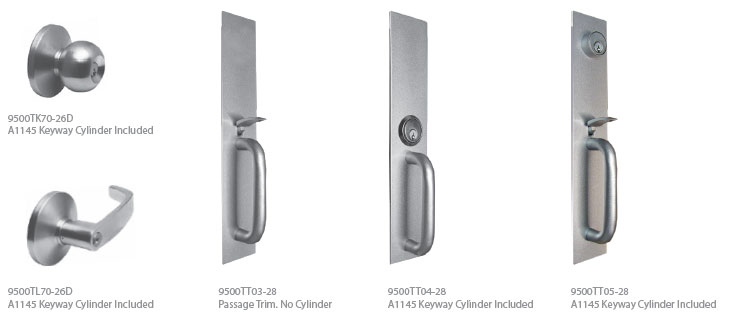

9500 Series Trim Options

9500 Series Trim Options
MFG# Description Finish
9500TK10-26D Passage Knob Trim Satin Chrome
9500TL10-26D Passage Lever Trim Satin Chrome
9500TK70-26D Entrance/Classroom Knob Trim, SC4 Keyway Satin Chrome
9500TK80-26D Storeroom Knob Trim, SC4 Keyway Satin Chrome
9500TL70-26D Entrance/Classroom Lever Trim, SC4 Keyway Satin Chrome
9500TL80-26D Storeroom Lever Trim, SC4 Keyway Satin Chrome
9500TT03-28 Thumbpiece Passage Trim Aluminum
9500TT03-32D Thumbpiece Passage Trim Stainless Steel
9500TT04-28 Storeroom Trim, SC4 Keyway Aluminum
9500TT04-32D Storeroom Trim, SC4 Keyway Stainless Steel
9500TT05-28 Thumbpiece Entrance/Classroom Trim, SC4 Keyway Aluminum
9500TT05-32D Thumbpiece Entrance/Classroom Trim, SC4 Keyway Stainless Steel

Double Door Strike

Double Door Strike for 6500 series and 9500 series

Double Door Strike
MFG# Description
9500AS251 Double Door Strike
